I. Overview of the Ribbon Mixer
The ribbon mixer consists of a U-shaped container, a ribbon-shaped mixing blade, and transmission components. The ribbon-shaped blade is generally made of double or triple layers. The outer layer of ribbons collects materials from both sides towards the center, while the inner layer of ribbons transports materials from the center towards both sides, forming convection mixing. The ribbon mixer has good effects on mixing viscous or cohesive powder particles, as well as mixing powder particles with liquid and paste materials. The cylinder cover can be made into a fully open door, facilitating cleaning and changing products for the equipment.

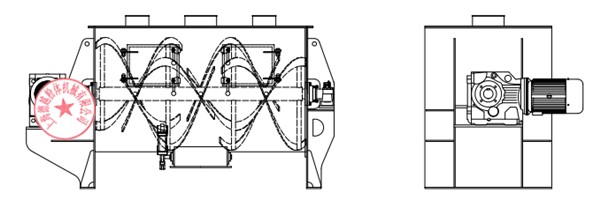

II. Operating Principle
The horizontal ribbon mixer utilizes inner and outer diameter ribbons mounted on the mixing shaft to agitate the material inside the barrel, ensuring the mixer maximizes the range of material movement within the barrel. In terms of the mixer's structure, the ribbons are designed to be complementary, with the inner ribbon driving the material near the shaft center to rotate around the axis and pushing from the inside to the sides axially, while the outer ribbon drives the material near the barrel wall to rotate around the axis and pushing from the sides to the inside axially. This creates convection and circulation of the material within the barrel, facilitating shear mixing, thereby achieving rapid and uniform mixing of the material in a relatively short period of time.
III. Application Fields
It is widely used in various fields such as food, pesticides, chemical industry, veterinary medicine, aquaculture, and new materials. It can mix powders with powders and powders with liquids, especially capable of mixing paste-like, viscous, or high-specific-gravity materials (such as putty, real stone paint, metal powder, and other products).
Application of DLH ribbon mixer

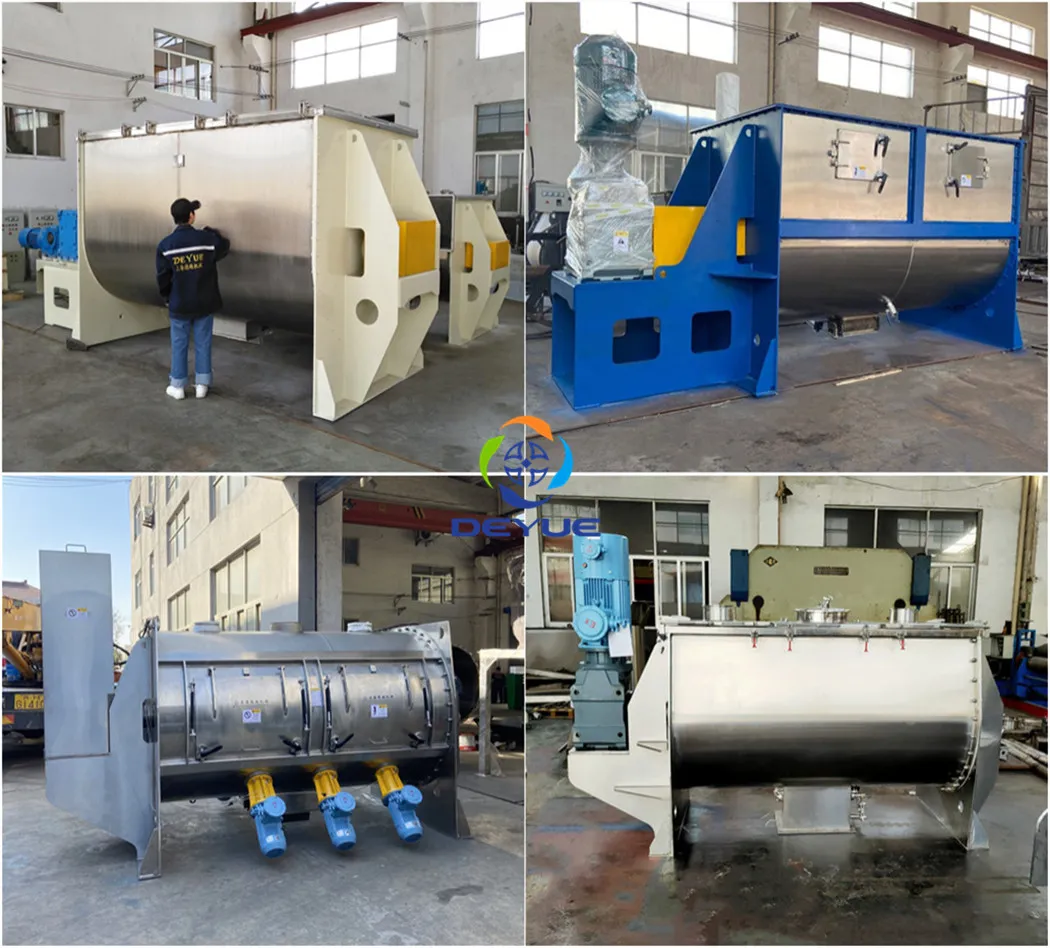

IV. Structural Features
1. This machine is a horizontal cylinder with a unique structure featuring two layers of spiral belts inside and outside. It operates smoothly, is reliable in quality, produces low noise, has a long service life, and is easy to install and maintain. With various agitator structures, the horizontal ribbon mixer is not affected by the size and density of particles in terms of mixing efficiency.
2. The mixing speed is fast and the mixing uniformity is high, especially for viscous materials. A scraper can be installed on the spiral belt, which also achieves good mixing results for viscous materials.
3. Under the mixing requirements for different materials (special materials must be cleaned before each mixing), different spiral belt structures are adopted, and a jacketed type that can be heated and dried is used.
4. The forward and reverse rotating spiral strips are installed on the same horizontal shaft, forming a low-power and efficient mixing environment. The smooth mixing process reduces the damage to fragile materials. The addition of a flying knife structure also serves the function of crushing, and a liquid spray system can also be installed to better mix liquids and powders evenly.
5. A removable cleaning door can also be installed on the horizontal machine body for user cleaning. The overall height of the equipment is relatively low, making it easy to install.

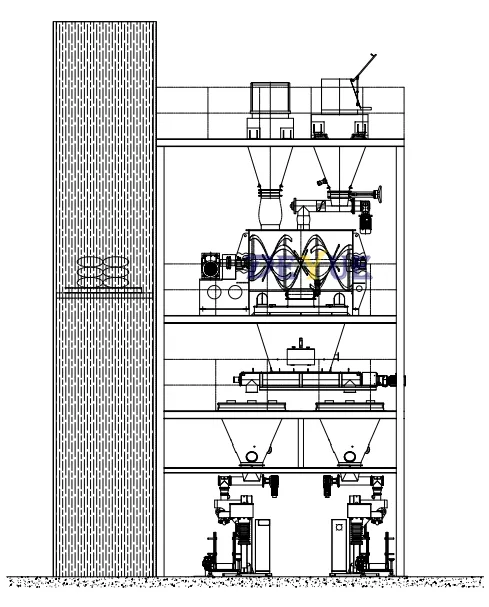

V. Schematic diagram of small production line
VI. Technical parameters of DLH ribbon mixer:
Commercial note: * The mixing volume in the table is based on data measured using powder material with a bulk density of 1 as the medium. Model selection should be calculated based on parameters such as the mesh size of the product, bulk density of the material, and fluidity.
* In case of working conditions involving high temperature, high pressure, flammability, explosiveness, corrosiveness, viscosity, etc., detailed data must be provided for separate model selection and customization.
* If there are any changes to the data and images in this table, no further notice will be given. The correct parameters are subject to the actual product provided.
* This table does not cover all products. For more information, please contact our sales engineer at 13917895463
VII. Product Advantages
1. Wide application range and low destructive impact
The horizontal structure, coupled with the unique double spiral ribbon design, enables it not only to mix powders with each other but also to stir and mix powders with liquids. It can also stir paste-like, viscous, or denser materials (such as putty, real stone paint, metal powder, and other products).
2. High equipment stability and long service life
The reducer boasts advantages such as high output torque, low noise, long gear life, and minimal oil leakage; the discharge valve adopts an arc-shaped valve that fits perfectly with the barrel, ensuring no dead spaces during mixing. The innovative valve structure design guarantees both the valve's service life and its sealing effectiveness.
3. High loading rate and strong sealing performance
Based on different material characteristics, the barrel body can be designed as O-shaped or U-shaped, with a maximum loading capacity of 65% of the material. For ultra-fine powder, a composite sealing structure combining airtightness and packing is adopted, which can greatly improve the sealing life and effectiveness. For slurry with good fluidity, a mechanical seal can be configured to meet the mixing requirements under various working conditions.
4. High non-standardity
We can customize various types of non-standard products, such as spraying type, explosion-proof type, heating type, vacuum type, etc. The material can be customized according to requirements, including carbon steel, SS304 stainless steel, SS316L stainless steel, and it can also be lined with polyurethane or sprayed with high wear-resistant materials. Valves can be customized as plum blossom valves, butterfly valves, flapper valves, ball valves, etc.
